ENGINEERING DESIGN REVIEW // APJ 3D LABS

DFM Assessment Services

Eliminate manufacturing surprises before the first tool cut. Our Design for Manufacturing Analysis and Manufacturability Assessment Engineering detects critical design flaws — draft angles, wall thickness, tooling conflicts — at CAD stage, saving costly rework downstream.

DFM Assessment Services Design for Manufacturing Analysis Manufacturability Assessment Product DFM Benchmarking
FAILURE MODES

Manufacturing Risk Points

01 // GEOMETRY

Draft Angles

02 // THERMAL

Sink Marks

03 // TOOLING

Undercuts

04 // MACHINING

Tool Access

05 // KINEMATIC

Assembly Clash

06 // STRESS

Warpage

3D Injection Mould Draft Angle Analysis
FAILURE MODE
Part friction creates a vacuum seal during ejection, causing severe scuffing.
DFM PROTOCOL
Implement minimum 1°–3° draft per face aligned with the mould pull direction.

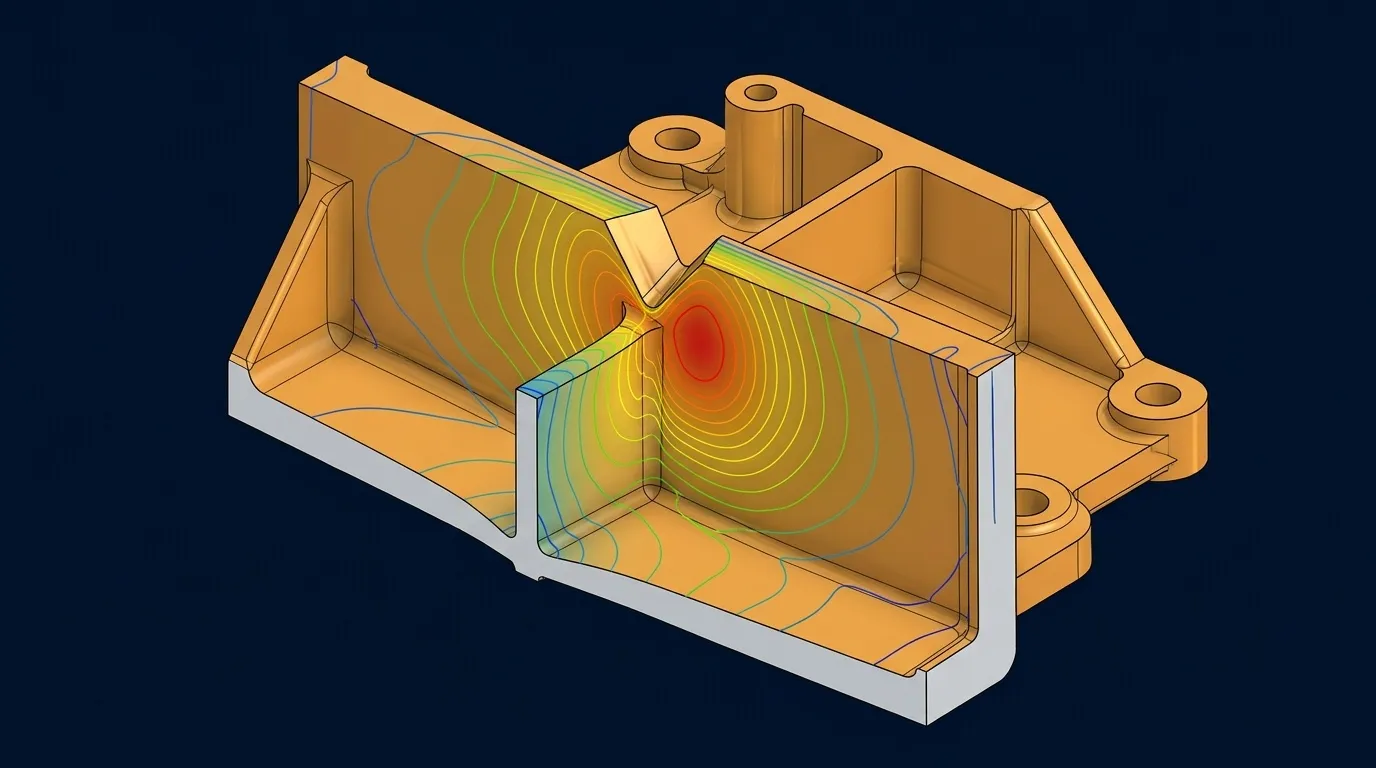

Volumetric Shrinkage and Sink Mark Analysis
FAILURE MODE
Disproportionate volumetric shrinkage causes localized depressions on A-sides.
DFM PROTOCOL
Constrain internal rib thickness to ≤ 60% of the adjacent nominal wall thickness.

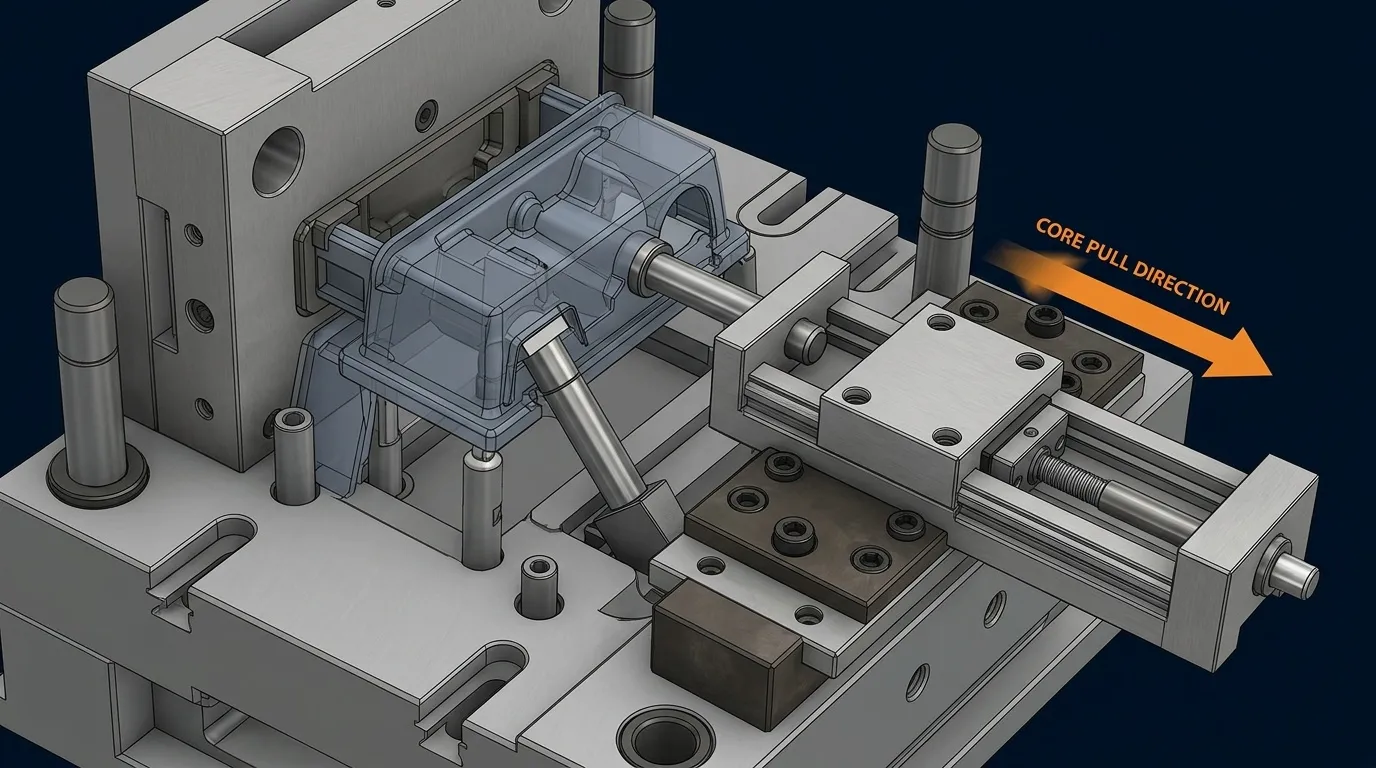

Tooling Side-Action Core Slide Mechanism
FAILURE MODE
Geometry prevents straight-pull mould opening, mandating expensive side-cores.
DFM PROTOCOL
Redesign snap-fits with pass-through cores (shut-offs) or reposition geometry.

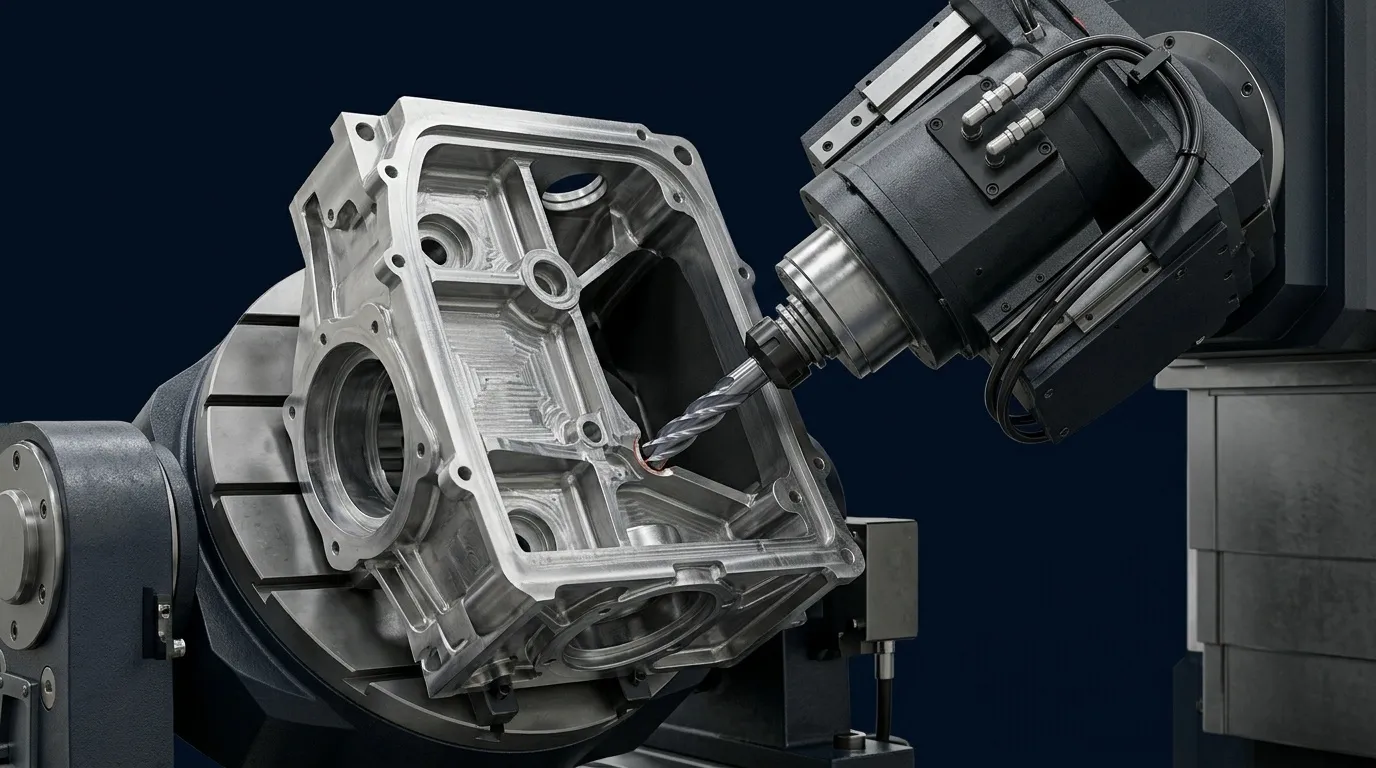

5-Axis CNC Milling Cutter Pocket Reach
FAILURE MODE
Deep, narrow pockets or sharp corners exceed standard end-mill reach, causing chatter.
DFM PROTOCOL
Increase corner fillet radii to >1/3 depth. Standardize hole sizes.

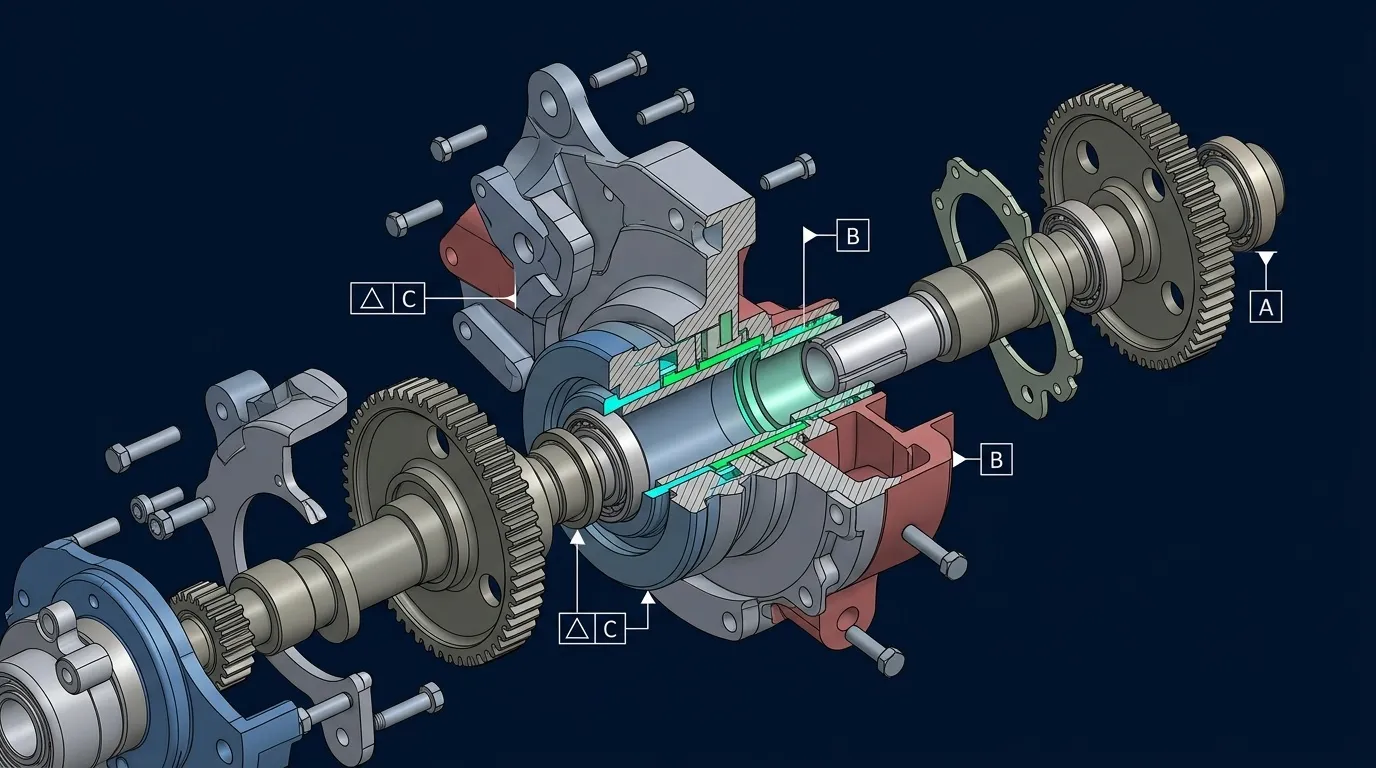

Assembly Kinematic Tolerance Stack and GD&T Datums
FAILURE MODE
Extreme tolerance stack-up across assemblies causes kinematic binding.
DFM PROTOCOL
Execute 1D/3D tolerance stack analysis. Realign GD&T datums.

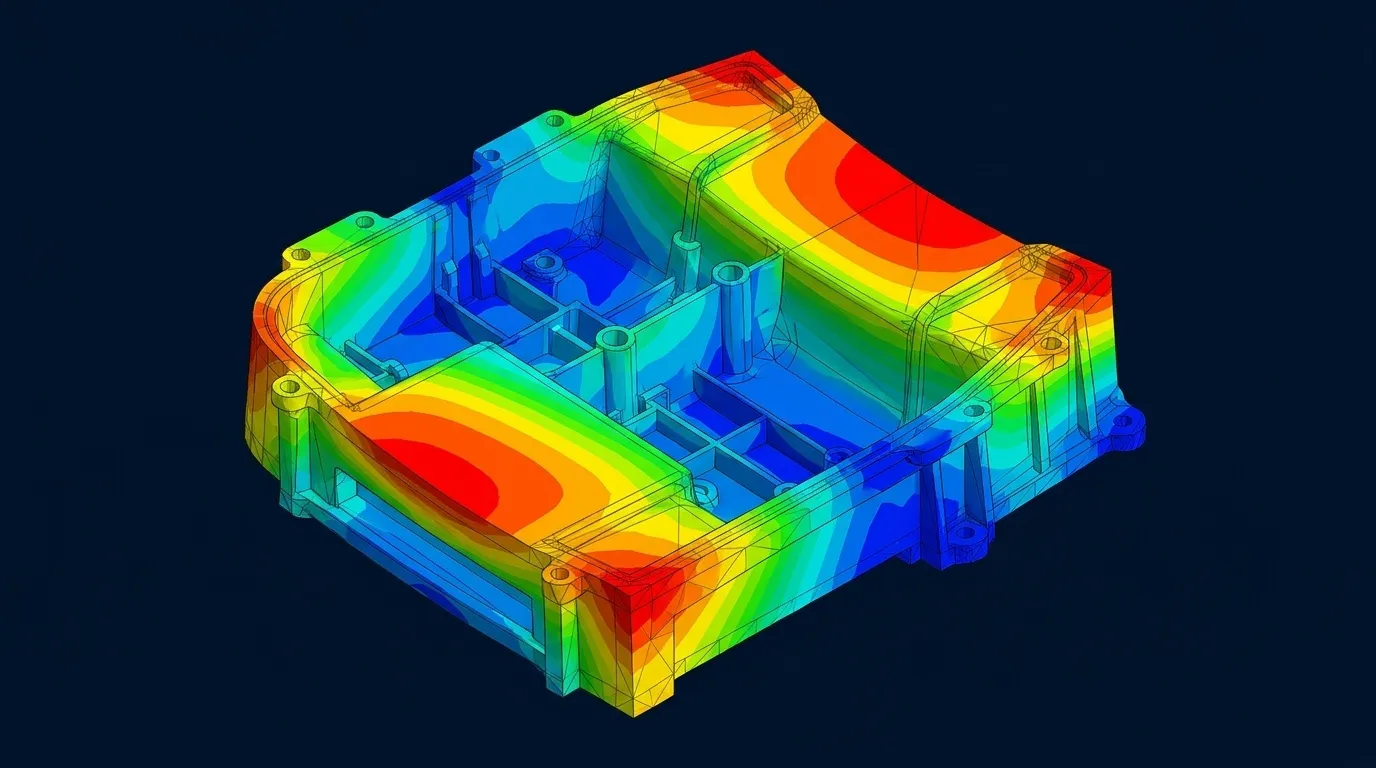

CAE Polymer Warpage and Differential Cooling Heatmap
FAILURE MODE
Non-uniform cooling rates induced by uneven cross-sectional thickness result in global distortion.
DFM PROTOCOL
Maintain uniform wall thickness. Optimize gate location via simulation.
INTERACTIVE DFM MATRIX

Manufacturing Process Verification

Hover over the holographic data slabs to deploy the specialized DFM checklists for your targeted production domain.

Injection
Moulding
  • ✓ Draft Angle Analysis
  • ✓ Rib vs Wall Ratio
  • ✓ Boss Integrity Check
  • ✓ Parting Line Topology
  • ✓ Sink Mark Prediction
  • ✓ Undercut Solutions
Sheet
Metal
  • ✓ Min Bend Radii limits
  • ✓ Hole-to-Edge Offset
  • ✓ Flange Relief Cuts
  • ✓ Weld Accessibility
  • ✓ Burr Clearances
  • ✓ Flat Pattern Validation
Casting &
Forging
  • ✓ Parting Plane Setup
  • ✓ Shrinkage Allowances
  • ✓ Thermal Hot Spots
  • ✓ Core Pull Directions
  • ✓ Machining Datums
  • ✓ Wall Transitions
CNC
Machining
  • ✓ Tool Reach Checks
  • ✓ Pocket Corner Radii
  • ✓ Cavity Aspect Ratios
  • ✓ Fixturing Strategy
  • ✓ Tap Accessibility
  • ✓ Setup Reduction
OMNIDIRECTIONAL SCANNING ENGINE

What Our DFM Dashboard Detects

Every CAD file is subjected to an exhaustive 360° topology sweep. Hover the sensory nodes to inspect the critical geometry heuristics mapped by our engine.

DRAFT ANGLE
WALL THICKNESS
TOOL ACCESS
SHRINKAGE RISK
AWAITING INPUT
DRAFT ANGLE

Per-face draft validation against mould pull direction & shrinkage.

WALL THICKNESS

Min/max thickness heat-mapping across the full envelope.

TOOL ACCESS

Machining reach & cutter clearance bounding box simulation.

SHRINKAGE RISK

Thermal gradient and mass concentration hotspot detection.

RIB RATIO

Rib-to-wall thickness mathematics to prevent surface sink marks.

OBSTRUCTED FEATURES

Blind hole, internal geometry, and slide-requiring undercut flagging.

SETUP OPTIMISATION

Multi-axis operational sequence and fixturing vector analysis.

KINEMATIC STACK

Mating interference, GD&T conflict, and insertion path mapping.

RIB RATIO
OBSTRUCTED FEATURES
SETUP OPTIMISATION
KINEMATIC STACK
MEASURABLE IMPACT

Before vs After DFM Assessment

Toggle the system overlay below to witness the algorithmic impact of our DFM engineering review on production cost, quality, and cycle time.

DFM ASSESSMENT ENGINE // SIMULATION
RAW CAD
DFM OPTIMISED

Unoptimised Baseline

Raw engineering model direct from design team. High risk of tool collision, material warp, and inflated BOM cost.

Manufacturability Score38 / 100
Tooling ComplexityHIGH (Multiple Side Cores)
Yield Probability62%
✕ SYSTEM LOG
> SCANNING TOPOLOGY...
> ERR: DRAFT_ANGLE_0.3_DEG
> ERR: WALL_THICKNESS_DISCREPANCY
> ERR: UNDERCUT_DETECTED (Z-AXIS)
> WARN: MACHINING_REACH_EXCEEDED
STATUS: NOT APPROVED FOR TOOLING

DFM Certified Model

APJ 3D validated geometry. Drafts corrected, kinematics aligned, and tool paths streamlined for immediate production scale.

Manufacturability Score96 / 100
Tooling ComplexityLOW (Straight Pull)
Yield Probability99.8%
✓ SYSTEM LOG
> SCANNING TOPOLOGY...
> PASS: DRAFT_ANGLE_ALIGNED (+2.5 DEG)
> PASS: WALL_THICKNESS_UNIFORM
> PASS: UNDERCUTS_ELIMINATED
> PASS: MACHINING_CLEARANCE_OK
STATUS: CERTIFIED FOR MANUFACTURING
APJ 3D DFM PROTOCOL

From CAD to Manufacturing Sign-Off

A stringent, engineering-led pipeline delivering decisive redesign recommendations and absolute production certainty.

01
TIME: T+24 HRS

Data Intake & Security

Secure, NDA-protected ingestion of native engineering files (STEP, IGES, Parasolid). Design intent established.

02
TIME: T+48 HRS

Automated Topography Scan

Heuristic algorithms map wall thickness derivations, draft angle absences, and undercut interferences across the envelope.

03
TIME: T+72 HRS

Domain-Specific Analysis

Engineers cross-reference geometric flags against targeted manufacturing parameters classifying severity.

04
TIME: T+96 HRS

Redesign Synthesis

Actionable engineering resolutions formulated. Alternative topologies modelled to circumvent failure modes.

05
TIME: T+120 HRS

Report Compilation

Structured delivery of the DFM dossier containing annotated CAD screenshots, issue logs, and redesign roadmaps.

06
TIME: ON DEMAND

Manufacturing Sign-Off

Post-revision secondary review resulting in the issuance of an APJ 3D DFM Certificate—authorizing procurement.

Technical Service Overview Reviewed by APJ 3D Engineering Desk • Updated September 2026

What is DFM Assessment Services India?

Design for Manufacturing (DFM) Assessment is a manufacturability review of CAD geometry that detects critical design flaws — draft angles, wall thickness inconsistencies, and tooling conflicts — before the first tool is cut, preventing costly downstream rework.

When to Select This Service

Choose DFM assessment when you need to eliminate manufacturing surprises before tooling investment, validate draft angles and wall thickness at the CAD stage, or benchmark a design's manufacturability ahead of production.

DFM Assessment Services India Technical Specifications

Technical Capabilities & Verification Standards

Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.

Engineering Parameter APJ 3D Capability & Precision Range Compliance Standard / Verification
Draft Angle Analysis CAD geometry is scanned for zero-draft and negative-draft faces that would prevent clean mould release Injection Moulding DFM Checklist
Rib-to-Wall Ratio Internal rib thickness is checked against the adjacent nominal wall, flagging ribs exceeding 60% of wall thickness Sink Mark Prediction
Undercut & Side-Core Assessment Blind holes and undercut features requiring slides or side-action cores are flagged, with straight-pull alternatives recommended Tooling Complexity Rating (Low / Medium / High)
Parting Line & Gate Review Parting line topology and wall-thickness uniformity are reviewed, with gate location optimized via mould-fill simulation Injection Moulding & Sheet Metal DFM
Manufacturability Scoring Each CAD submission is scored on a 0-100 manufacturability scale and marked Approved or Not Approved for tooling Manufacturability Score Report
Production Domain Coverage Dedicated DFM checklists applied across Injection Moulding and Sheet Metal production domains Domain-Specific Checklist
FAQ

Frequently Asked Questions

What is a DFM assessment?

A Design for Manufacturing (DFM) assessment is a manufacturability review of CAD geometry that detects critical design flaws, such as draft angles, wall thickness inconsistencies and tooling conflicts, before the first tool is cut.

What manufacturing problems does a DFM assessment catch?

It flags manufacturing risk points including draft angles, sink marks, undercuts, tool access, assembly clash and warpage, so they can be fixed in CAD instead of in steel.

When should I do a DFM assessment?

Do it before tooling investment, when you want to eliminate manufacturing surprises, validate draft angles and wall thickness at the CAD stage, or benchmark a design's manufacturability ahead of production.

How do I get started with a DFM assessment?

Send your drawings, CAD data or part details through the Get a Quote form or the contact page. The APJ 3D engineering team reviews the scope and replies with a tailored proposal.

Design Better. Manufacture Faster.

Our DFM Assessment Services and Design for Manufacturing Analysis eliminate production failures before a single tool is cut. Partner with APJ 3D for definitive Manufacturability Assessment Engineering — from CAD review to full Product DFM Benchmarking Services — and deliver components engineered to manufacture, right first time.

Request DFM Assessment Upload CAD Model
✓ Injection Moulding DFM ✓ Sheet Metal DFM ✓ Casting & Machining DFM ✓ Pan India OEM Support
